HYDRO-GEOCHEMICAL CHARACTERISTICS AND EVALUATION OF GROUNDWATER QUALITY ASSESSMENT FOR DRINKING AND DOMESTIC PURPOSES IN ASWAN, EGYPT
1 Aswan Water and Wastewater Company, Aswan, Egypt
2,3,4Geology department, Faculty of Science, Assiut University, Assiut, Egypt
ABSTRACT
In arid regions, people strive to have high drinking water quality resource. Limited water resources in arid regions present a critical factor that affects economic and societal development. The hydrogeological and hydrological conditions in such areas are extreme variable and affect largely the hydrochemical characteristics of the groundwater system. This study was carried out in Elhasya (Edfu, Aswan, Egypt) with an objective of understanding the suitability of local groundwater quality for domestic purposes in such arid climate region and to investigate the potential impact of untreated sewage discharges and irrigation canals on groundwater quality. In order to accomplish these targets, 250 water samples were collected from 4 groundwater wells and analyzed for physical, chemical and biological parameters in the period from Jan. 2007 to Dec. 2012. The hydrological characteristics of the region have been identified. Aquachem tool was used to define and characterize the hydrchemistry of the pumped water samples. Wells can be considered neutral to slightly alkaline, pH is around (6.5-8.5). Cations (Mg2+, Na+ and Ca2+) and anions (HCO3–, Cl–, and SO42–) were measured using ion chromatography instrument and it was clear that they did not exceed the recommended limits of world health organization (WHO) nor the Egyptian standards. However, bacteriological and biological results refer to that the wells are contaminated and a dose of disinfectant should be injected for drinking use. Stiff and piper diagrams were used to evaluate the hydrochemistry of groundwater of the study area. According to the plotting results, we can say that the majority of groundwater samples was characterized by the abundance alkaline earth metals (Ca2+, Mg2+) over of the alkalis (Na+, K+). In conclusion, it is apparent that the pumped water in El-Hasya city needs to be injected with dose of disinfectant to promote the biological activity so as to be suitable for drinking uses.
Keywords:Groundwater, Aquifer, Pollution, Evaluation ,Disinfectant, Drinking water.
ARTICLE HISTORY: Received: 6 July 2017, Revised: 31 July 2017, Accepted: 8 August 2017, Published: 15 August 2017
Water pollution is a major global problem which requires ongoing evaluation of water resource policy at all levels (international down to individual aquifers and wells). It has been suggested that water pollution is the leading worldwide cause of deaths and diseases [1] and that it accounts for the deaths of more than 14,000 people daily [2]
Discharging huge amount of treated waste and industrial waters to the surface water systems is the main reason related to the pollution of water systems and thus increasing the cost of treatment. In Egypt, 239 wastewater treatment plants discharge annually more than 4.5 billion m3 to surface water systems [3] that may affect the surface water and its adjacent groundwater quality.
In arid climate, the interaction between surface and groundwater systems is highly variable [4] thus may affect the groundwater quality. Furthermore, evaporation rate is high, that may concentrate the pollutants in the pumped water. Therefore, it is very important to monitor the change in groundwater quality and review its suitability for drinking water use. Many studies have been developed to characterize the hydrochemical aspects of the Nile aquifer Shamrukh [3]; Hamdan and Rady [5]; Shamrukh and Abdel-Wahab [6] and Mohamed, et al. [7]. However, hardly any researcher studied the hydrochemical characters of El-Haysa city where 4 wells produce 360 m3/day drinking water for more than 100,000 habitants per day. This research aims to evaluate the groundwater quality in El-Hasya city (Aswan, Egypt), define its suitability of it for drinking water use and determine the hydrochemical aspects of the aquifer.
The present Study (El-Hasya wells) is located in the western part of Aswan governorate (Egypt) at latitude (24.87◦) and longitude (32.86◦). It is surrounded from eastern north by Awlad Ali valley and western north by Abo Makah valley (Figure 1). The wells had been drilled and operated since 1960.
The Climatology of this area is generally characterized by hot summer and mild winter with low rainfall. Air temperature ranges between 36.5°C (summer) and 15.5°C (Winter), relative humidity ranges between 51% and 61% (Winter), 33% and 41% (Spring), and 35% and 42% (Summer) [8].
The quaternary aquifer consists of unconsolidated materials of sands, gravels and clays .These sediments are underlain by a thick bed of clay which is considered to act as an impervious base for groundwater flow. The aquifer has a thickness that ranges between 80 and 120 meters ( Figure 2 ). It is mainly recharge from River Nile, small irrigation canals and drains that penetrate the study area [9].
The regional groundwater flow is generally from southeast to northwest (Figure 3), paralleling to the water flow of the Nile. It overlies a thick layer of alluvial deposits which consider the main groundwater aquifer in the Nile Valley (the Quaternary aquifer) stream aquifer system [9].
The stratigraphic succession is very important to clarify the type of aquifers, its thickness and its extent in the study area. The subsurface studies of the geological sequence showed the geological cross sections and its characteristics (type of rocks, layer thickness and horizontal stretch). These studies showed that there is a sequence of sedimentary rocks in all regions. These sedimentary rocks are belonging to the modern eras and particularly the Quaternary. The sediments of the study area are considered as Quaternary sedimentary rocks, which represent the main water-bearing unit in the Nile Valley region. These deposits are belonging to the Protonile River system which is occupying the present Nile Basin, and made up of gravels and coarse sand, embedded in brown muddy matrix [9].

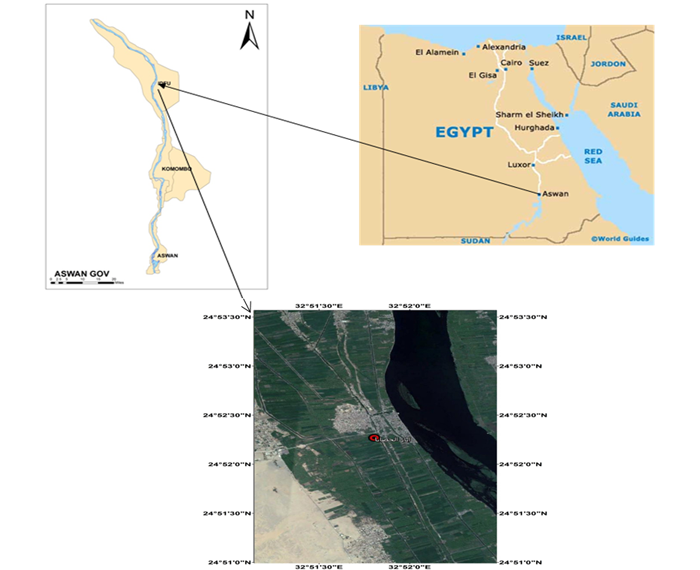

Figure-1. Map of the study area from google earth

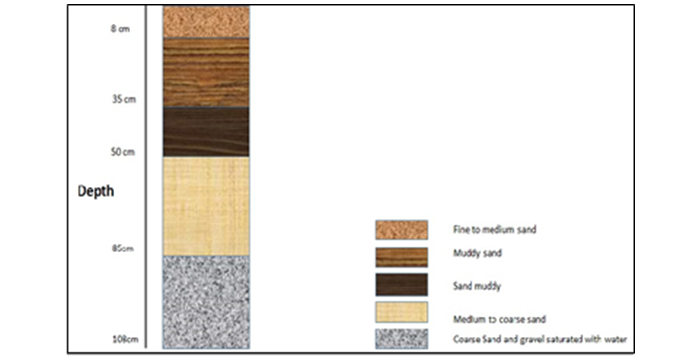

Figure-2. Lithology of the study area [9]

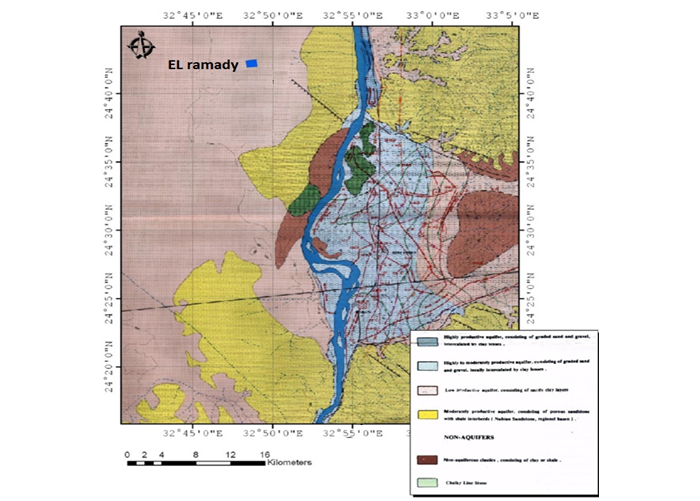

Figure-1. The movement of groundwater in the Quaternary aquifer [9]
Water samples collected from January 2007 to December 2012 from the drilled wells for chemical, bacteriological and physical analysis. Water samples were stored in a lightproof insulated box with cooling packs and transferred to the laboratory. The samples were kept in refrigerator container at 4 °C until the time of analysis. The techniques and methods followed for collection and preservation were in accordance with the 20th edition of the Standard Methods of APHA [10] .
Cations (Ca+2, Mg+2, Na+, K+, NH3+) and anions (NO2-, NO3-, F-, Cl-) were measured using (Metrohm 881 Compact IC Pro ion chromatograph). ICP –OES Perkin Elmer Optima 7000 DV was used to determine the concentration of metals include: Fe+2, Mn+2, Cd+2, Pb+3, Zn+2, Ni+ in the pumped water. Sulphate ions (SO4-2) had been measured using turbidimetric method. Physical properties such as PH (HACH Model 51910), conductivity (Crison EC meter +30) and turbidity (Hach model 2100N) were measured.
The chemical analyses for the ground water samples were carried out in Reference Laboratory for Drinking Water accordance with the 20th edition of the Standard Methods of APHA [10].
The biological analyses for the ground water samples were carried out in Aswan Laboratory for Drinking Water accordance with the 22th edition of the Standard Methods of APHA [10] . R2A media was used to detect heterotrophic bacteria. Endo Agar media was used to detect the total coliform bacteria. MFC Agar was used to detect the fecal coliform bacteria in water samples.
AQUACHEM program was used to evaluate the hydrochemical characteristics of the pumped water and to define its suitability for drinking water use.
The present work had the objective of understanding the hydrochemical constituents of groundwater related to its suitability for drinking and domestic use. The chemical analytical results of groundwater samples are presented in Table1. A compassion between the analytical results and the Egyptian and WHO drinking water guidelines had been carried out to determine its suitability for drinking water and domestic purposes [11].
Wells can be considered neutral to slightly alkaline, pH is around (6.5-8.5). According to international standards set of drinking water [12] In the study area, the collected groundwater samples don’t exceed the standard limit. Magnesium in the study area ranged from (8.9 – 32.6) mg/L. The standard limit of magnesium concentration based on WHO [11] is 150 mg/L. So that, all analyzed samples found below the standard limit. Calcium in the groundwater samples ranged from (42.8 to 63.9) mg/L which is lower the standard limit (200 mg/L) based on WHO [11].
Chloride in the study area ranged from (14.9 to 21.1) mg/L and the standard limit of chloride concentration is 250 mg/L based on WHO [11] and the Egyptian Standard limit, 2007.
Iron values ranged from 0.010 mg/l (min.) to 0.039 mg/l (max.) the standard limit of Iron in WHO [11] is 0.3 mg/l and Egyptian standards limits 2007 is 0.1 mg/l. Manganese (Mn 2+) concentration of groundwater ranged from 0.003 to 0.074 mg/l
Table-1. Egyptian standards and WHO guidelines for drinking water as well as the chemical results of our studied wells
Parameter |
Egyptian standards limits 2007 |
WHO guidelines (2004) |
Concentration range for Well 1, 2,3 and 4 |
pH |
6.5 - 8.5 |
6.5–8.5 |
6.5 - 8.5 |
Turbidity (NTU) |
<1 |
<5 |
0.13 - 0.44 |
EC μS/Cm |
1500 |
750 |
581.2 - 411.6 |
TDS (mg/L) |
1000 |
500 |
226.4 – 319.7 |
TH (mg/L) |
500 |
500 |
152. 8 - 252.4 |
HCO3- (mg/L) |
250 |
250 |
213.7 – 251.1 |
Cl- (mg/L) |
250 |
250 |
14.9 – 21.1 |
Mg+2 (mg/L) |
150 |
150 |
8.9 – 32.6 |
Na+ (mg/L) |
200 |
200 |
13.6 - 21.3 |
Ca+2 (mg/L) |
200 |
200 |
42.8 – 63.9 |
SO4 -2(mg/L) |
250 |
250 |
19 -58.9 |
Fe+2 (mg/l) |
0.3 for surface water 0.1 for groundwater |
0.3 |
0.010 - 0.039 |
Mn+2 (mg/l) |
0.1 for surface water 0.5 for groundwater |
0.4 |
0.003- 0.074 |
N.B: All the measured heavy metals include Cd+2, Pb+3, Zn+2, Ni+ were under the limit of detection
The Egyptian Standard Limits Low No. 458 (2007) for TDS is 1000 mg/l, according to this limit all samples suitable for drinking and WHO [11] limit (Figure 4). The groundwater salinity of the aquifer belongs to freshwater class based on the classification of Chebotarev [13]. The ground water salinity can be classified in all samples are excellent to good water.

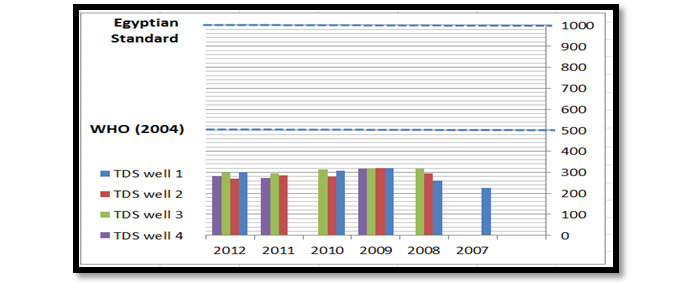

Figure-4. Total dissolved solids of results of our studied wells compared with Egyptian standard & WHO [11]
It obvious that the value of total hardness ranges between (152. 8 -252.4) mg/l (Figure 5), Which can be classified as hard water to very hard water according to Hem [14]. The total hardness values ranged between (152.8-252.4) mg/L, so all wells are suitable for laundry uses according to Hem [14] the Egyptian Standard Limit.

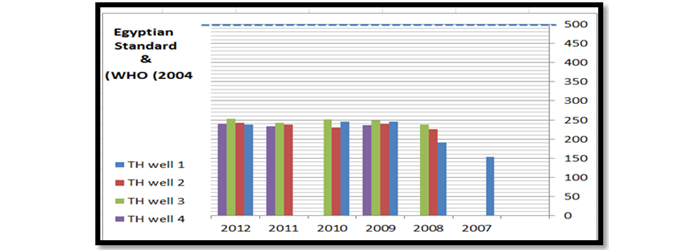

Figure- 5. Total hardness of results of our studied wells camper with Egyptian standard & WHO Sodium (Na+)
The low sodium concentration is recorded in all the locations in the studied area within safe limits of 200 mg/l (Figure 6). Sodium in the study area ranged from (13.6 - 21.3) mg/L. The standard limit of the sodium concentration is 200 mg/L based on the international standard limit [11]

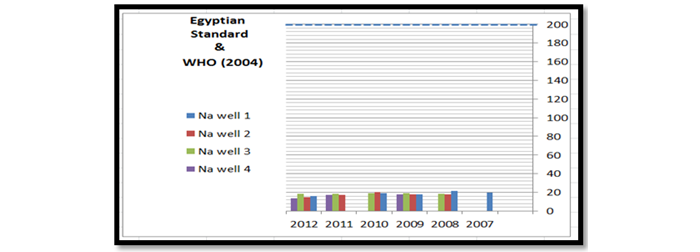

Figure-6. Sodium concentration results of our studied wells camper with Egyptian standard & WHO [11]
All samples were represented within limit prescribed by WHO [11] and Egyptian Standard Limits Low No. 458 (2007). If the concentration of calcium and magnesium in drinking water is more than the permissible limit, it causes unpleasant taste to the water (Figure 7).

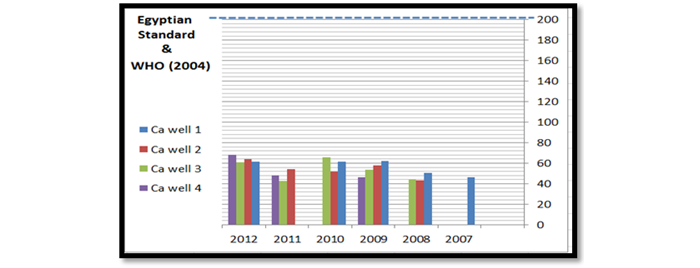

Figure-7. Calcium concentration of results of our studied wells camper with Egyptian standard & WHO [11]
The limit prescribed by WHO [11] and The Egyptian Standard Limits Low No. 458 (2007) for Sulphate is 250 mg/l, according to this limit all samples suitable for drinking (Figure 8) . Sulfate in the analyzed groundwater samples ranged from (19 to 58.9) mg/L.

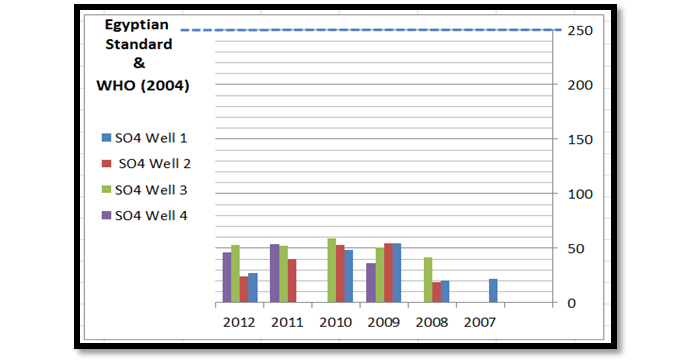

Figure - 8. Sulphate concentration of results of our studied wells camper with Egyptian standard & WHO
Bacteriological pollution found in all analyzed samples. Heterotrophic bacteria result between (990 – 1972) , Total coliform bacteria are between (124 – 215) and fecal coliform bacteria between (32 – 60) Levels of microbial contamination of water in these areas were due to disposal of sewage, wastewater and irrigation water from nearby areas. Table 2
Table-2. Bacteriological results of our present studied wells
parameter | Egyptian standards limits 2007 |
WHO guidelines (2004) |
Concentration range for Well 1, 2,3 and 4 |
Heterotrophic Bacteria (CFU) | 50 |
50 |
(990 – 1972) |
Total coliform bacteria (CFU) | 2 |
3 |
(124 – 215) |
Fecal coliform bacteria (CFU) | -ve |
-ve |
(32 – 60) |
The bacteriological result all in WHO and as Egyptian Standard Limits of drinking water and that make EL-HASYA groundwater not safe drinking and domestic purposes but Aswan water company solve these problem by addition chlorine gas in the expulsion pipe . Chlorine has power to kill and destroy all present bacteria. After that the groundwater is safe for drinking and domestic purposes.
This study examines the suitability of groundwater as a drinking water source in arid climate (El-Hasya City, Edfu, Egypt). The hydro-chemical characteristics of water samples taken during the period (Jan.2007 to Dec. 2012) refers that the chemical parameters of the pumped water doesn’t exceeds the WHO and Egyptian standards. However, discharging waste water to the surface systems and infiltrating to groundwater system increase the number of diseases bacteria and degrade the quality of water. A dose of disinfectant (like chlorine) is recommended to suppress the biological activity. A further research to investigate the pollution of this aquifer by pesticides from the surrounded agricultural is needed.
